Auxiliary Equipment for Biomass Forming Lines
Keep every material flow stable before and after pelletizing
Auxiliary equipment connects the complete biomass forming production line. ROHA configures crushing, conveying, grinding, buffering, screening, dust collection and packing equipment around the raw material, site layout, production capacity and final fuel handling method.
The goal is simple: controlled feeding, cleaner workshops, easier maintenance and a production line that operates as one integrated system instead of isolated machines.
Why Auxiliary Equipment Matters
A pellet plant is only as stable as the equipment between machines
Auxiliary equipment controls particle size, feeding rhythm, material transfer, temporary storage, dust points and finished product handling. It protects the pellet mill and improves continuous production efficiency.
Stable Feeding
Crushers, grinders, conveyors and buffer bins keep material size and feed rate consistent before pelletizing.
Cleaner Operation
Screening and dust collection points reduce fines, floating dust and cleaning pressure around high-dust sections.
Flexible Layout
Conveying direction, silo position and packing method can be matched to workshop size and project expansion plans.
Complete Line Sections***
What Is Included in a Complete Pellet Production Line
Each section is configured around the feedstock, capacity and final use of the pellet fuel.
Raw Material Receiving
Receiving hopper, feeding conveyor and storage buffer for incoming biomass.
Crushing Section
Crusher, hammer mill, magnetic separator and conveyor for size reduction.
Fine Grinding Section
Hammer mill and separation equipment to prepare material for pelletizing.
Cooling Section
Cooling equipment to reduce pellet temperature before screening and packing.
Screening Section
Screening equipment removes fines and helps stabilize finished product quality.
Packing Section
Bagging, packaging, weighing and transport systems for finished pellets.
Dust Collection System
Bag filters and collection points for crushing, grinding and packing areas.
Conveying & Storage
Screw conveyors, belt conveyors, silos and material transfer equipment.
Process Matching
Configured by material route, not selected from a generic list
Wood chips, sawdust, straw, rice husk, shells and mixed biomass all behave differently. Auxiliary equipment is matched to moisture, particle size, bulk density, dust level, bridging tendency and final storage or packing method.
- Raw material receiving and coarse crushing before drying.
- Fine grinding and impurity separation before pelletizing.
- Buffer storage between high-load equipment sections.
- Dust-control points for cleaner and safer workshop operation.
- Finished pellet screening, temporary storage and packaging.
| Line Section | Typical Auxiliary Equipment |
|---|---|
| Raw Material Preparation | Crusher, feeder, belt conveyor, magnetic separator |
| Fine Processing | Hammer mill, cyclone, screw conveyor, buffer bin |
| Pellet Forming Support | Storage silo, dosing conveyor, air lock, dust collector |
| Finished Product Handling | Cooler connection, screener, packing scale, sealing machine |
| Workshop Environment | Baghouse dust collector, ducts, collection points and fans |

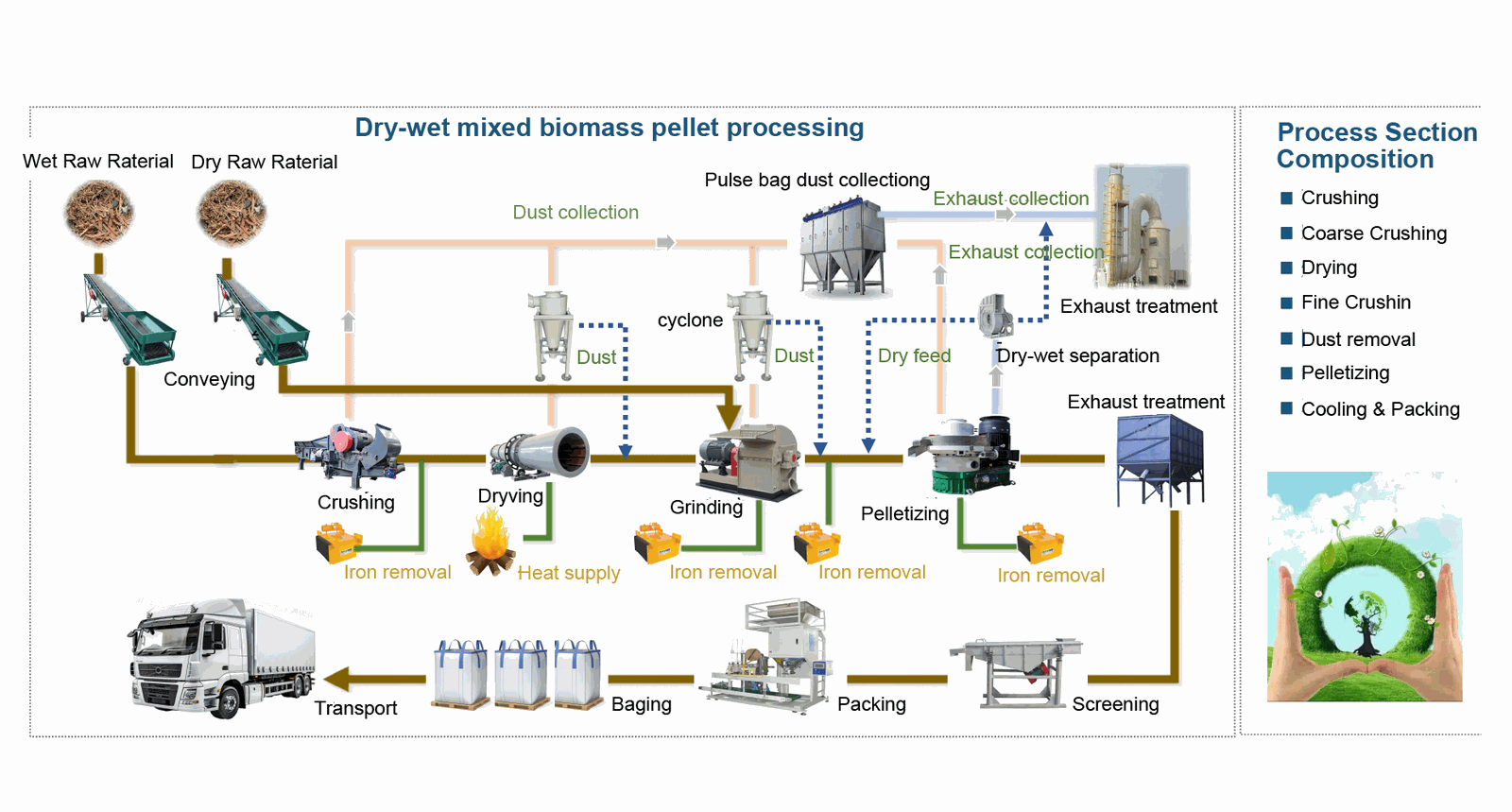

Typical Workflow
How auxiliary equipment supports the complete line
01
Crush
Reduce oversized biomass into manageable feedstock for drying or grinding.
02
Transfer
Move material between equipment sections with conveyors matched to layout and capacity.
03
Grind
Prepare fine, uniform particles for stable pelletizing and die protection.
04
Buffer
Use bins and silos to balance feeding and reduce process interruptions.
05
Screen
Separate fines and return material to improve final pellet quality.
06
Collect Dust
Control high-dust points around crushing, drying, grinding and packing.
07
Store
Hold raw material or finished pellets in a controlled and accessible position.
08
Pack
Weigh, bag, seal and transfer finished pellets for storage or shipment.
Request a matched auxiliary equipment proposal
Share your raw material, capacity, process route and workshop layout. ROHA can recommend crushing, conveying, grinding, silo, screening, dust collection and packing equipment for your biomass forming production line.
